Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

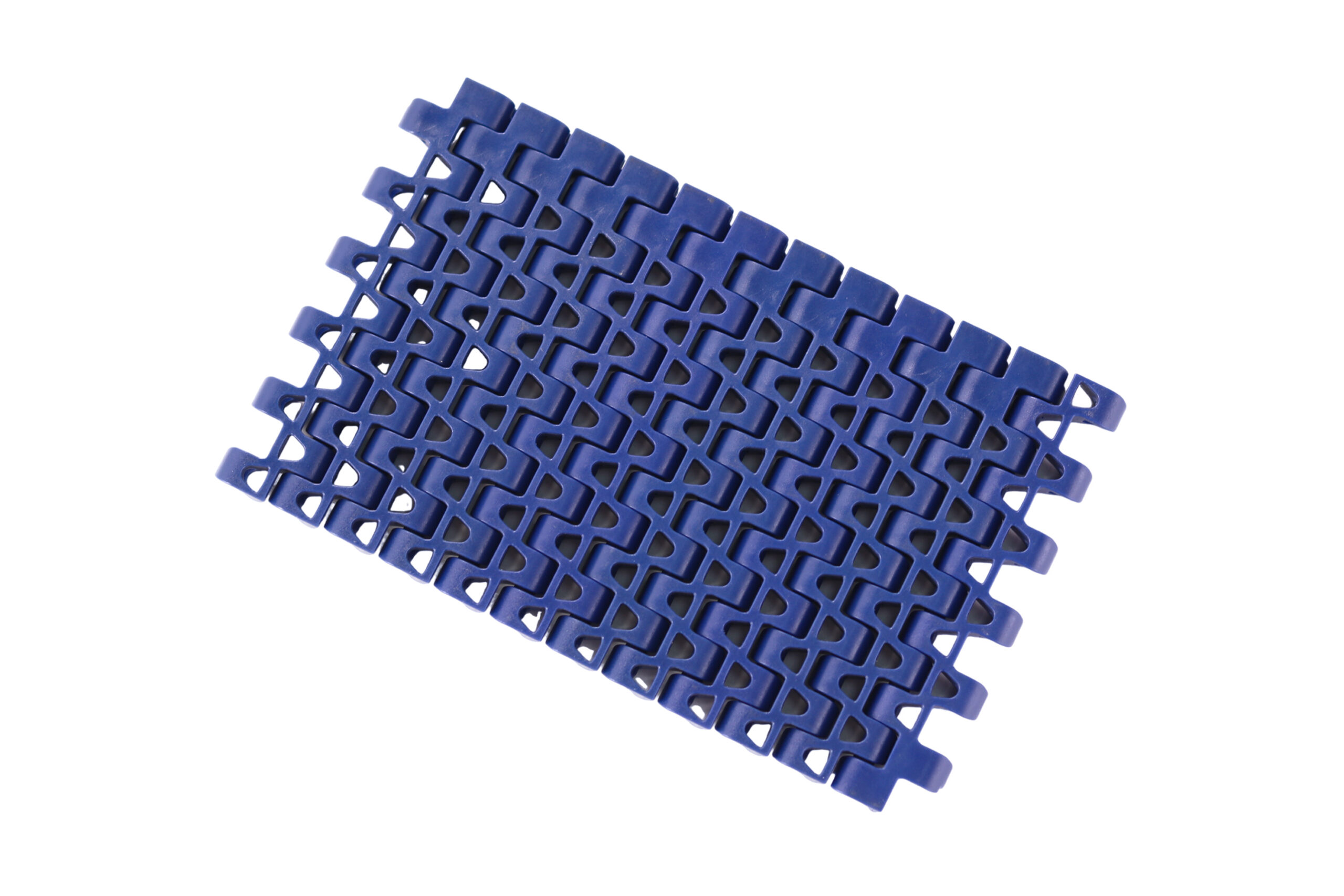

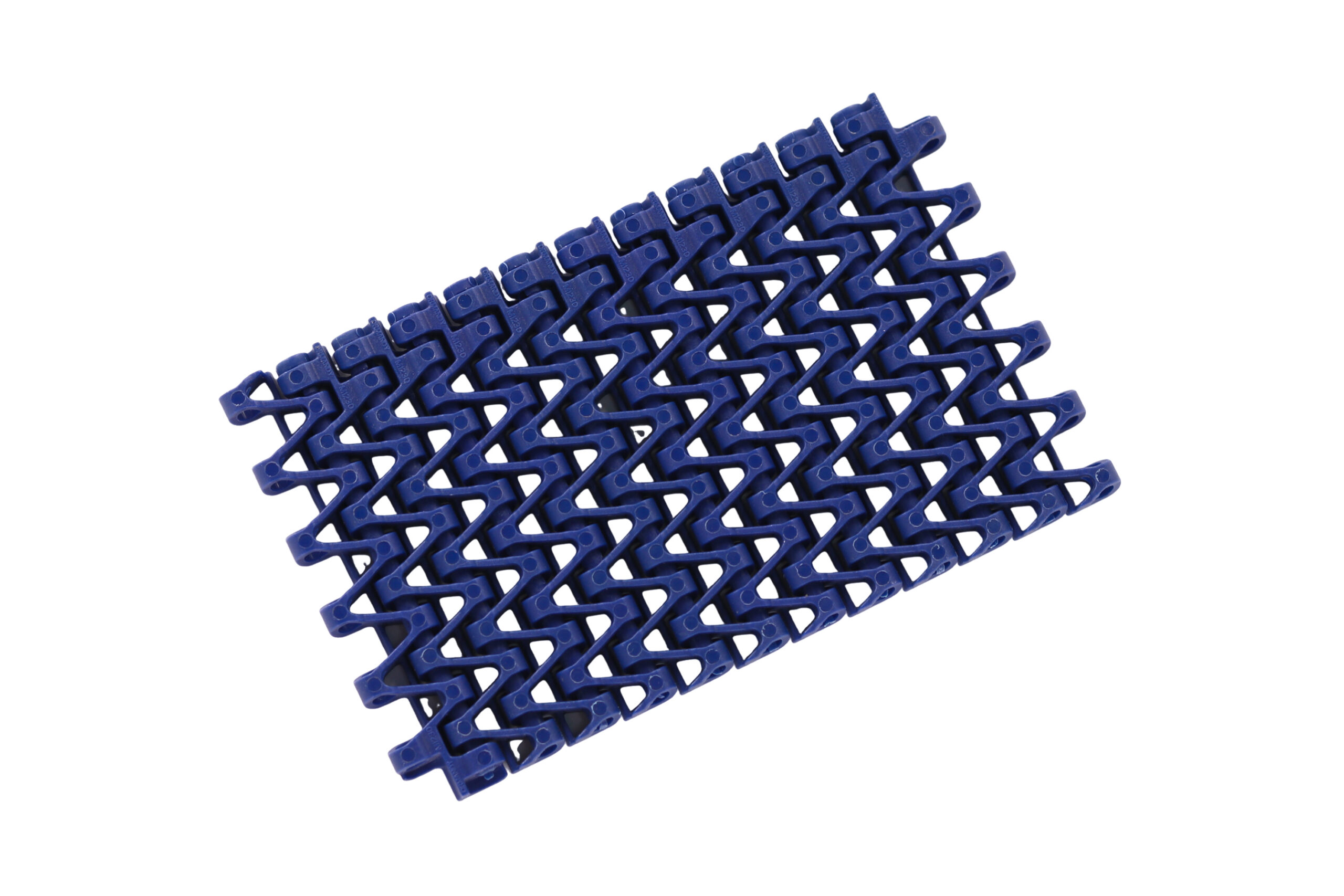

CY-12700B Flush Grid
- BELT TYPE
- DESIGN
- CY-12700
- Flush Grid
- NOMINAL PITCH
- 12.7 mm / 0.5 inch
- Open Area
- 18%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 10 mm / 0.39 inch
- Pin Diameter
- 5 mm / 0.2 inch
- WIDTH
- The width value can be increased in multiples of 50mm (1.97")
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment |
|---|---|---|---|---|---|
| POM | PP | 16000 | 7.8 | 50/100/150 | W=50*N |
| POM | PA | 18000 | 8.1 | 50/100/150 | W=50*N |
| PP | PP | 11000 | 5.4 | 50/100/150 | W=50*N |
| PE | PE | 7000 | 5.7 | 50/100/150 | W=50*N |
