Product Introduction

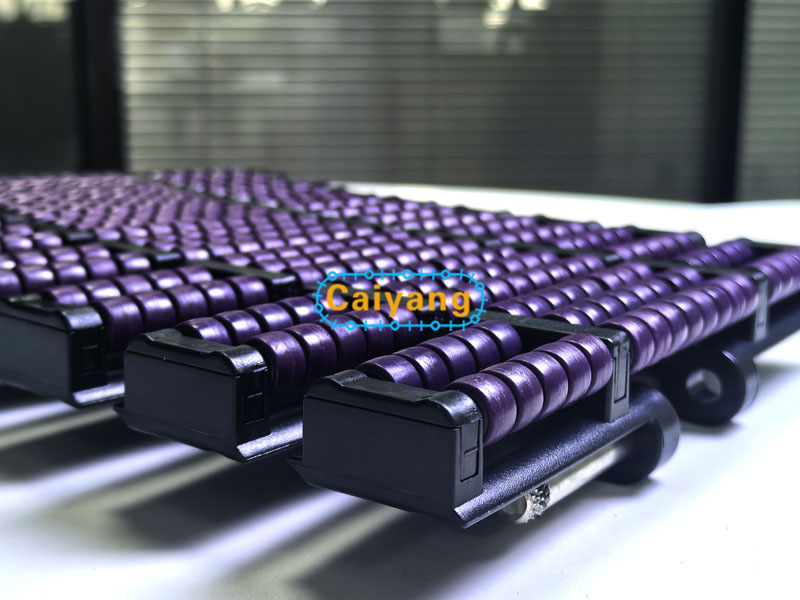

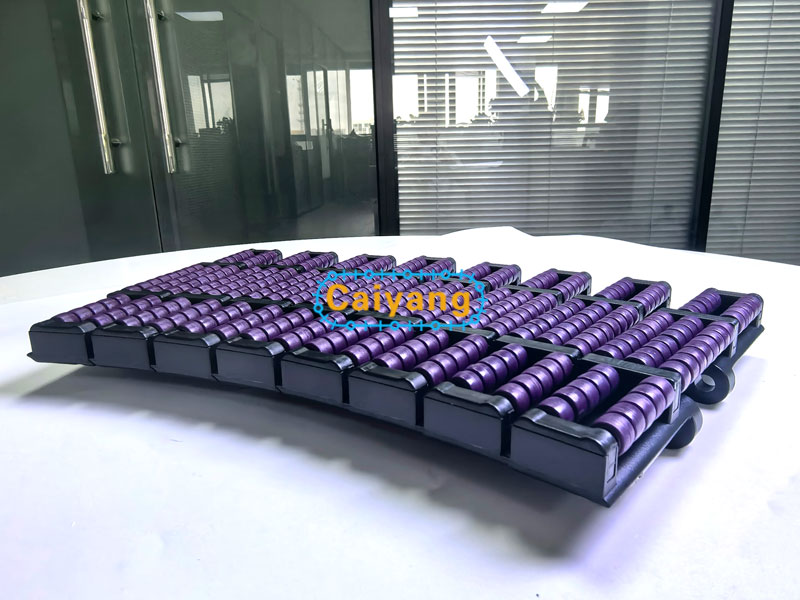

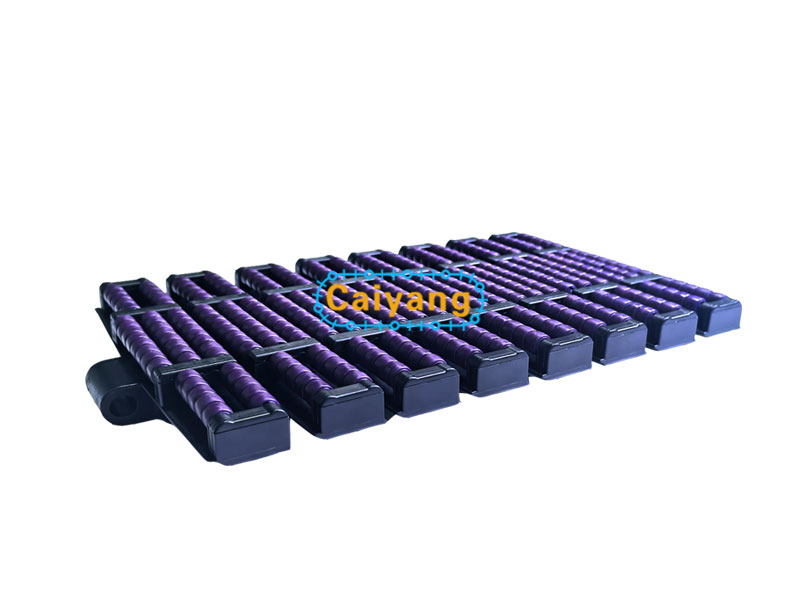

823Turning ball chain plate
- BELT TYPE
- DESIGN
- CY823
- Turning ball chain plate
- NOMINAL PITCH
- 38.1
- Open Area
- 0
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 19.3MM
- Pin Diameter
- 8MM
- WIDTH
- 190
Technicial Specifications
| Chain plate model | Chain plate width | Chain weight | Minimum turning radius | Chain plate material | Working load | Pitch (mm) | Pin diameter (mm) | Backbend radius (minimum) mm |
|---|---|---|---|---|---|---|---|---|
| CY823-K750 | 190.5 | 4.28 | R610 | POM | 3830 | 38.1 | 8 | RD200 |
| CY823-K1200 | 304.8 | 5.83 | R680 | POM | 3830 | 38.1 | 8 | RD200 |
